Çalışma alanı (x/y/z): |
410 x 410 x 140 mm |
Genel Boyutlar: |
900 x 730 x 1580 mm |
İş mili: |
1.5 kW, 24000 rpm (hava soğutmalı) |
Konumlandırma doğruluğu: |
± 0.01 mm |
Kurşun vidası doğruluğu: |
± 0.02 mm |
Max. Maks. Travel Speed Seyahat hızı: |
6000 mm/dak |
Sürücü sistemi: |
step motor |
Kontrol sistemi: |
Weihong 3 Eksenli DSP Denetleyicisi |
Takım çapı aralığı: |
Ø3 - Ø6 mm |
Makine Ağı Ağırlığı: |
~ 270 kg |
Toplam güç: |
2,4 kW |
İş tutma: |
Kelepçe Armatürler / Yapıştırıcı |
Çalışma alanı (x/y/z): |
410 x 410 x 140 mm |
Genel Boyutlar: |
900 x 730 x 1580 mm |
İş mili: |
1.5 kW, 24000 rpm (hava soğutmalı) |
Konumlandırma doğruluğu: |
± 0.01 mm |
Kurşun vidası doğruluğu: |
± 0.02 mm |
Max. Maks. Travel Speed Seyahat hızı: |
6000 mm/dak |
Sürücü sistemi: |
step motor |
Kontrol sistemi: |
Weihong 3 Eksenli DSP Denetleyicisi |
Takım çapı aralığı: |
Ø3 - Ø6 mm |
Makine Ağı Ağırlığı: |
~ 270 kg |
Toplam güç: |
2,4 kW |
İş tutma: |
Kelepçe Armatürler / Yapıştırıcı |

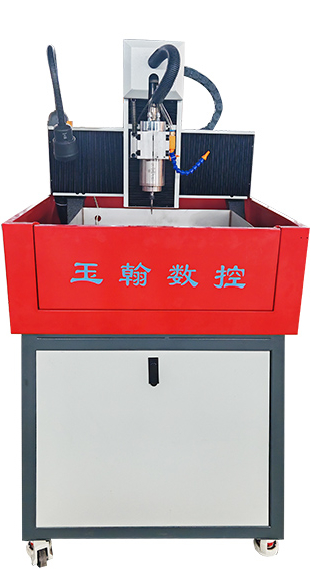

JadeMaster 40S: Where Precision Meets Power in Stone Carving
The JadeMaster 40S represents the pinnacle of accessible yet professional CNC technology for the ancient art of jade carving. Engineered for stability, accuracy, and ease of use, it transforms raw stone into exquisite works of art and precision components. The semi-enclosed chassis protects the operator and contains debris, making it suitable for a wide range of workshop environments.
Core Features & Advantages:
Uncompromising Precision: Achieve flawless detail with true ±0.01mm positioning accuracy and ±0.02mm lead screw precision, ensured by high-grade linear guides and robust construction.
High-Speed Spindle Performance: The powerful 1.5KW (24000 RPM) air-cooled spindle maintains constant torque at low speeds for smooth milling and effortlessly handles high-speed engraving, suitable for jade, composites, metals, and engineering plastics.
Rigid & Stable Platform: With a net weight of approximately 270kg, the heavy-duty cast and machined frame effectively absorbs vibrations, which is critical for achieving clean breaks and fine finishes on hard, brittle materials.
Intuitive Control System: The reliable Weihong 3-axis DSP control system is renowned for its user-friendly interface, supporting powerful yet straightforward operation for both simple and complex 3D patterns. It allows for adjustable feed rates from 0 to 6000mm/min.
Versatile Workholding: The machine supports multiple securing methods, including dedicated clamps for substitute wood bases and the use of adhesives, providing flexibility for various workpiece shapes and sizes.
Comprehensive Safety: The semi-enclosed design offers superior protection against flying chips and accidental contact, integrating safety into its core operation
